Need precision control for long-reach applications? BHARATH HYDRO PRODUCTS in Bangalore manufactures heavy-duty, double-sided, foot-mounted hydraulic cylinders built for 100 bar operating pressure.
Precision Engineering for Long-Reach Automation
When your Special Purpose Machine (SPM) or industrial automation system requires equal force and speed in both directions across a massive reach, a standard cylinder won't cut it.
At BHARATH HYDRO PRODUCTS in Bangalore, we engineer and manufacture custom Double-Sided, Double-Acting Hydraulic Cylinders designed for absolute stability over extended stroke lengths. The dual-rod design ensures uniform fluid displacement, giving you perfectly synchronized push and pull operations—crucial for highly precise automation and conveying systems.

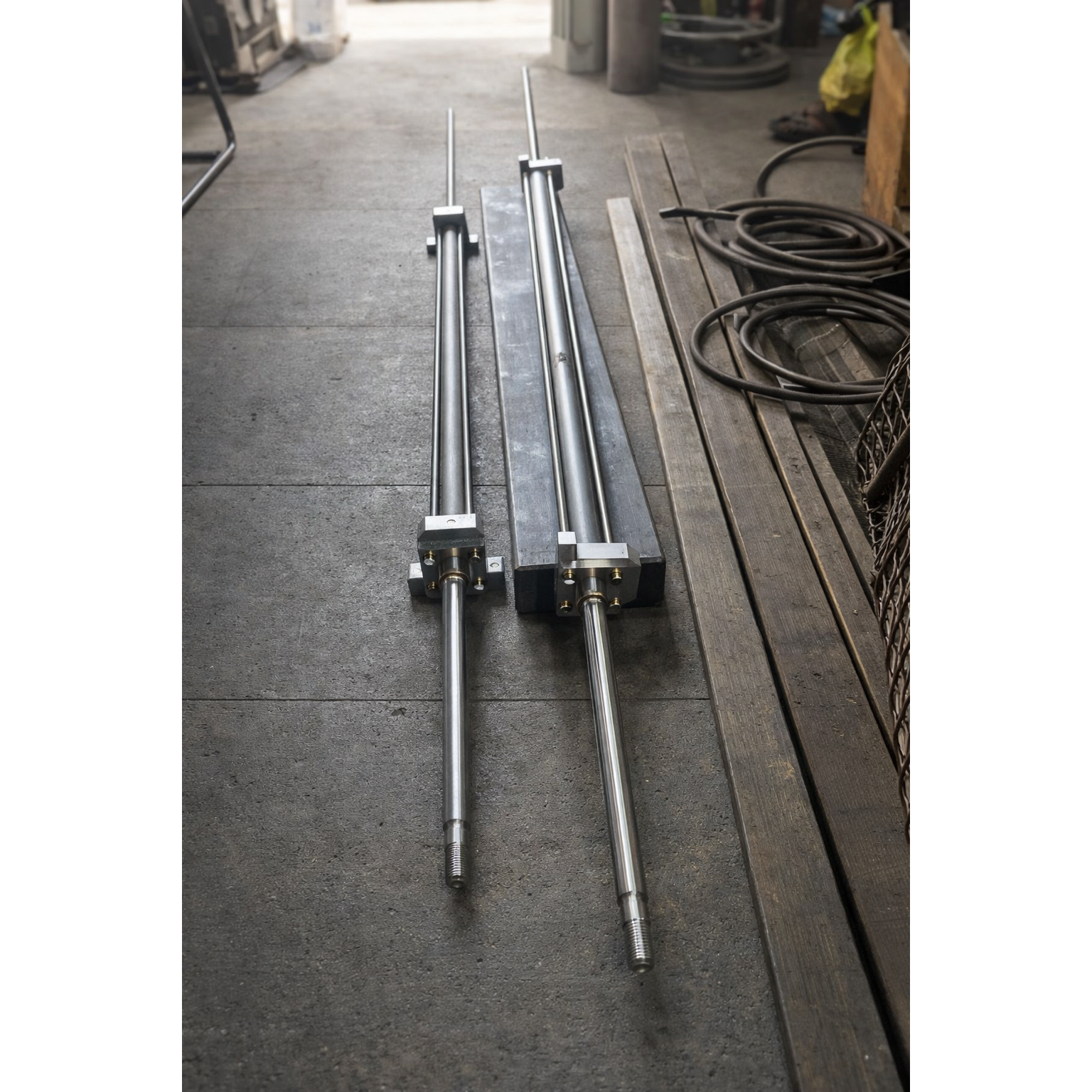

Product Spotlight: 1500mm Long-Stroke Foot-Mounted Cylinder
Custom 1500mm stroke, double-sided double-acting hydraulic cylinder with foot mounting manufactured by Bharath Hydro Products Bangalore.
The cylinders featured above are precision-machined to handle significant linear movement without rod deflection. The robust foot-mounting design provides maximum base stability, distributing the load evenly across the machine frame even at a full 1.5-meter extension.
Technical Specifications
We build these heavy-duty cylinders to rigorous industrial standards. This specific model features:
- Operation Type: Double Sided, Double Acting (Through-Rod)
- Bore Diameter: 63 mm
- Piston Rod Diameter: 36 mm (Hard chrome-plated for high wear resistance)
- Stroke Length: 1500 mm
- Operating Pressure: 100 Bar
- Mounting Style: Foot Mounted (for highly stable, horizontal or vertical integration)
Why Choose This Cylinder Design?
- Equal Speed & Force: Because the piston rod extends through both ends, the surface area is identical on both sides of the piston. This guarantees consistent actuation speed and force in both extension and retraction.
- Anti-Deflection: Engineered with high-grade steel and precision-honed tubes to prevent bowing or deflection across the massive 1500mm stroke.
- Heavy-Duty Seals: Fitted with premium hydraulic seals to withstand continuous 100-bar industrial cycles without pressure drops or leaks.
Manufactured Locally, Built for Heavy Industry
Whether you are building a custom SPM, an automated material handling line, or heavy-duty packaging equipment, our cylinders are built to last. We manufacture everything locally at our Bangalore facility, ensuring strict quality control and fast delivery.
Need a Custom Hydraulic Cylinder?
We manufacture hydraulic cylinders tailored to your exact bore, stroke, and mounting requirements.
Contact BHARATH HYDRO PRODUCTS today.
- Location: Hosa Road, Behind Bosch Facility, Bangalore
- Phone: +91 9110403817
- Email: bharathydroproducts@gmail.com
