High-Performance Hydraulic Power Packs for Complex Automation
Special Purpose Machines (SPMs) often require intricate hydraulic circuits where a single power unit must synchronize multiple movements simultaneously. At BHARATH HYDRO PRODUCTS in Bangalore, we specialize in engineering large-scale power units that act as the central 'heart' of your automation lines.
Product Spotlight: 20HP Multi-Station Power Unit

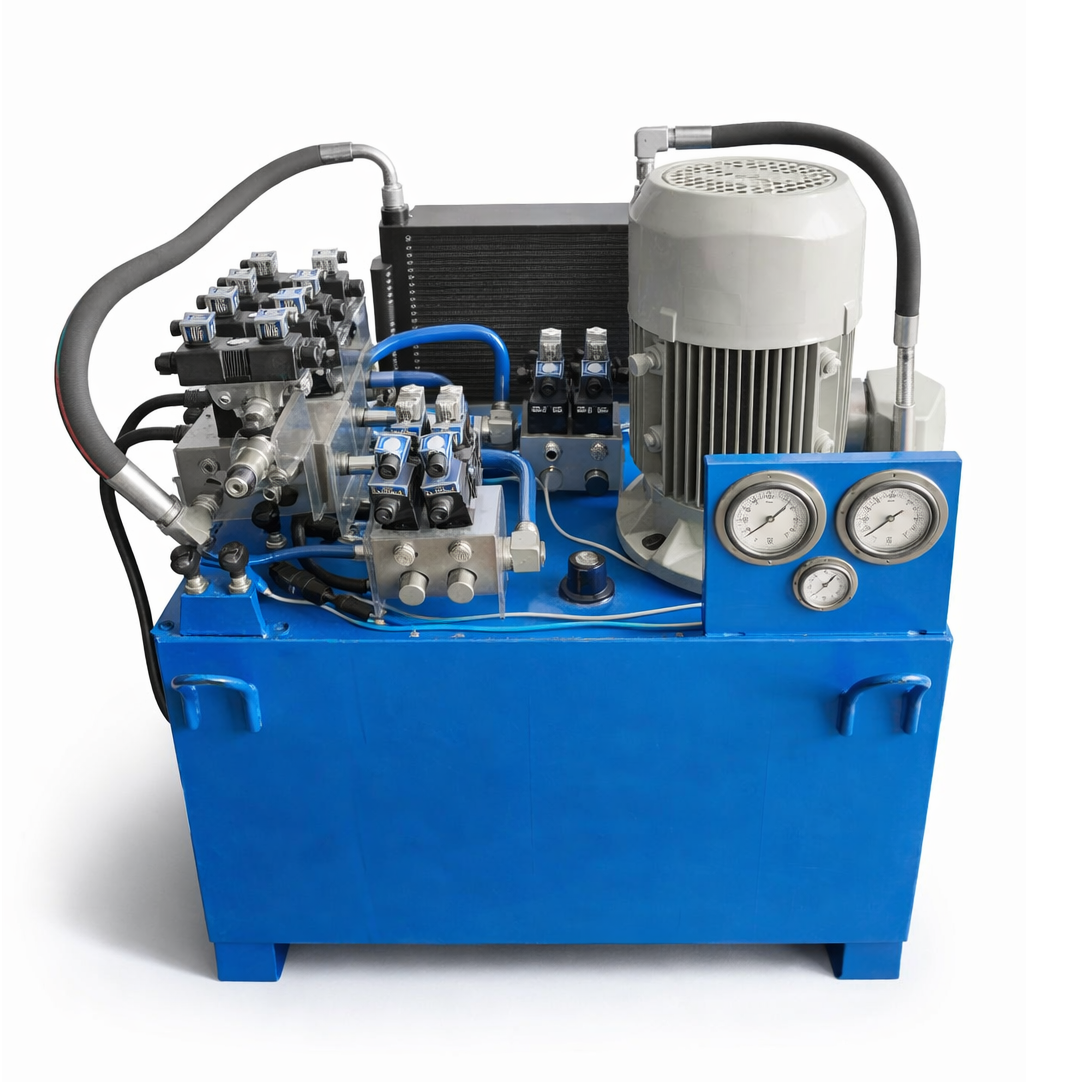

Custom 20HP hydraulic power pack with 300-liter tank and air-cooled heat exchanger manufactured by Bharath Hydro Products.
The unit shown above is a custom-engineered solution designed specifically for a complex Special Purpose Machine (SPM). Unlike standard packs that operate just one or two actuators, this robust system was built to control and synchronize 15 individual hydraulic cylinders simultaneously.
Technical Specifications
This power pack is built for continuous, heavy-duty industrial cycles:
- Prime Mover: 20 HP (High Torque Electric Motor) ensuring consistent flow and pressure under load.
- Reservoir Capacity: 300 Litres (Custom fabricated tank with baffle plates for oil de-aeration).
- Control System: Features a complex, custom-machined Manifold Block populated with high-response solenoid valves to manage 15 independent cylinder actuations.
- Thermal Management: Integrated with a heavy-duty Air-Cooled Heat Exchanger (Radiator) to maintain optimal oil temperature during 24/7 operation.
- Instrumentation: Equipped with glycerin-filled pressure gauges and level indicators for real-time system monitoring.
Designed for SPMs
This specific design addresses the common challenges faced by SPM builders:
- Space Efficiency: By stacking valves on a centralized manifold, we eliminated meters of messy external piping, creating a compact 'plug-and-play' unit.
- Heat Control: The 300L tank combined with the active cooling system ensures the oil viscosity remains stable, preventing machine slowdowns during long shifts.
- Reliability: We use branded valves and pumps to ensure that your 15-cylinder sequence never misses a beat.
Applications
Our high-capacity power packs are ideal for:
- Multi-station Drilling & Tapping Machines.
- Automated Clamping Fixtures for CNC lines.
- Large Material Handling Systems.
- Hydraulic Gantry Systems.
Why Choose BHARATH HYDRO PRODUCTS?
Located in Bangalore, we are more than just assemblers; we are hydraulic engineers. We calculate the exact flow (LPM) and pressure (Bar) required for your specific cycle time, ensuring you don't overpay for oversized motors or suffer from underpowered systems.
Get a Quote for Your SPM Power Pack
Building a machine that needs to control multiple cylinders? Don't settle for a standard catalog unit.
Contact BHARATH HYDRO PRODUCTS today. Location: Bangalore, Karnataka Phone: [9110403817] Email: [bharathydroproducts@gmail.com]
